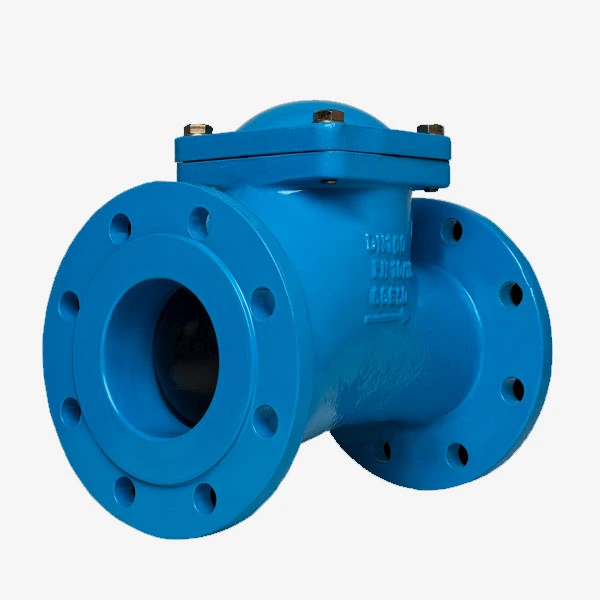

Check Valves

AGB Check Valves prevent reverse flow and protect pumps, compressors, and pipelines from damaging backflow surges. Available in dual-plate wafer, swing, tilting disc, and piston configurations, each design is optimized for low cracking pressure and rapid closure to minimize water hammer.

✓ Quick closing response minimizes water hammer
✓ Low cracking pressure for easy opening
✓ Maintenance-friendly renewable internals
✓ Multiple configurations: dual plate, swing, tilting disc, piston

Size Range

1/2"–72"

Pressure Class

ASME 150–2500

Temp Range

-196°C to +538°C

Types

4 Configurations

Technical Specifications

Parameter	Value
Product Number	AGB-CV-005
Series	CV Check Valve
Size Range	1/2" – 72" (DN15 – DN1800)
Pressure Class	ASME 150 – 2500
Temperature Range	-196°C to +538°C
Types Available	Dual plate wafer, Swing, Tilting disc, Piston
End Connection	Wafer, Flanged RF/RTJ, Butt Weld
Body Materials	WCB, LCB, CF8, CF8M, Duplex SS
Disc Materials	316SS, Duplex, Inconel, Titanium
Seat Materials	PTFE, Metal-to-metal, Elastomer
Design Standard	API 594, API 6D, BS 1868
Factory Test	API 598 shell & seat test

Primary Applications

Pump Protection

Pipeline Systems

Power Generation

Water & Wastewater

Chemical Processing

Offshore Platforms
